The future of qPCR is here, and it’s digital.

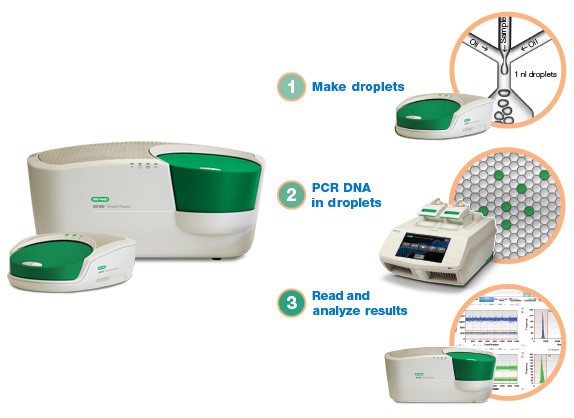

Bio-Rad’s QX100 Droplet Digital PCR system provides an absolute measure of target DNA molecules with unrivaled precision and accuracy. The QX100 system partitions each sample into 20,000 individual nanoliter-sized droplets. PCR-positive and PCR-negative droplets from every sample are then counted to provide absolute target quantification in digital form. The QX100 system provides a revolutionary approach to target DNA quantification. Click here for more information or contact your Bio-Rad Sales Representative to learn more.
The QX100™ ddPCR™ system lets you:
- Detect rare target sequences with unmatched sensitivity for cancer and viral research
- Measure small differences in target copy number variations (down to 1.2x differences)
- Determine absolute gene expression levels without a standard curve or the ΔΔCq method
| Specifications | |
| Starting sample size, µl | 20 |
| QX100 droplet generator capacity, samples/cartridge | 8 |
| Droplets per sample | 20,000 |
| QX100 droplet reader throughput, wells/hr | 32 |
| Sample illumination | Light-emitting diodes |
| Sample detection | Photomultiplier tubes |
| Detection channels | FAM, VIC |
| Linear dynamic range | 5 orders of magnitude |
| Precision | ±10% |
| Droplets per 96-well plate, million | 1.4 |
Ordering Information
| Catalog # | Description |
| 186-3001 | QX100 Droplet Digital PCR system with computer, includes droplet generator, droplet reader, laptop computer, software, and associated component consumables |
| 186-3004 | Droplet reader oil, includes two 1 L bottles |
| 186-3005 | Droplet generation oil, includes ten 7 ml bottles |
| 186-3006 | Droplet generation cartridges and gaskets, includes 5 packages of 1 x 24 DG8 cartridges and 5 packages of 1 x 24 gaskets |
| 186-3008 | DG8 cartridge for ddPCR, includes 1 package of 24 cartridges |
| 186-3009 | DG8 gaskets for ddPCR, includes 1 package of 24 gaskets |
| 186-3010 | 2X ddPCR supermix for probes, includes five 1 ml tubes |
| 186-3052 | 2X Buffer Control Kit, includes one 10 ml bottle |
